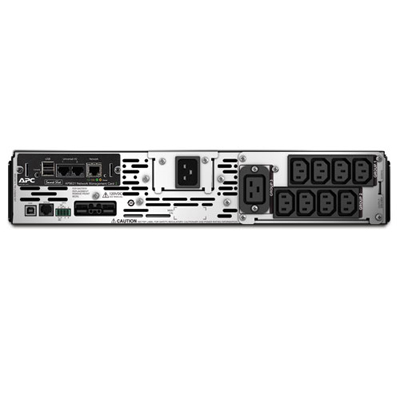

UPS APC SMX3000RMHV2UNC (3KVA/2.7KW)

UPS APC SMX3000RMHV2UNC (3KVA/2.7KW) là bộ lưu điện APC sử dụng công nghệ Line Interactive nhưng cho nguồn điện ổn định, chất lượng. Đây là sự lựa chọn cho những thiết bị tải quan trọng và nhạy với nguồn điện.

Thông số kỹ thuật tham khảo

Output

• Output power capacity

  2.7 KWatts / 3.0 kVA

• Max Configurable Power (Watts)

  2.7 KWatts / 3.0 kVA

• Nominal Output Voltage

  230V

• Output Voltage Distortion

  Less than 5%

• Output Frequency (sync to mains)

  50/60Hz +/- 3 Hz

• Other Output Voltages

  208, 220, 240

• Topology

  Line Interactive

• Waveform type

  Sine wave

• Output Connections
  (2) IEC Jumpers (Battery Backup)

  (8) IEC 320 C13 (Battery Backup)

  (1) IEC 320 C19 (Battery Backup)
• Transfer Time

  2-4 ms

• Transfer Time

  6ms typical : 10ms maximum

Input

• Nominal Input Voltage

  208V , 230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

• Cord Length

  2.44meters

• Input voltage range for main operations

  140 – 280V

• Number of Power Cords

  1

• Other Input Voltages

  220, 240

• Transfer Time

  2-4 ms

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  3hour(s)

• Replacement Battery

  APCRBC117

• Expected Battery Life (years)

  3 – 5

• RBC Quantity

  1

• Extendable Run Time

  1

• Battery Volt-Amp-Hour Capacity

  738

• Extended Run Options

  APC-Smart-UPS-X-3000VA-Rack-Tower-LCD-200-240V-with-Network-Card

• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)

  SmartSlot

• Pre-Installed SmartSlot™ Cards

  AP9631

• Control panel

  LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : configurable delays

• Emergency Power Off (EPO)

  Yes

Surge Protection and Filtering

• Surge energy rating

  645Joules

• Data Line Protection

  —

• Filtering

  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height

  85mm , 8.5cm

• Maximum Width

  432mm , 43.2cm

• Maximum Depth

  667mm , 66.7cm

• Rack Height

  2U

• Net Weight

  37.32kg

• Shipping weight

  45.36kg

• Shipping Height

  243mm , 24.3cm

• Shipping Width

  596mm , 59.6cm

• Shipping Depth

  869mm , 86.9cm

• Color

  Black

• Pallet Dimensions

  39.369999999999997inches

• # of Layers per Pallet

  4.0

• # of Units per Layer per Pallet

  2.0

• Pallet Weight

  855.12lbs.

• Units per Pallet

  8.0

Environmental

• Operating Environment

  0 – 40 °C

• Operating Relative Humidity

  0 – 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 – 45 °C

• Storage Relative Humidity

  0 – 95 %

• Storage Elevation

  0-15000meters

• Audible noise at 1 meter from surface of unit

  55.0dBA

• Online thermal dissipation

  184.0BTU/hr

Conformance

• Approvals

  C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE

• Standard warranty

  3 years repair or replace (excluding battery) and 2 year for battery, optional extended warranties available, optional on-site warranties available

Sustainable Offer Status

• RoHS

  Compliant

• REACH

  REACH: Contains No SVHCs

• PEP

  Available in Documentation tab

• EOLI

  Available in Documentation tab

• Battery Directive

  Compliant

• Battery Notes

  ts_Battery_Notes
